RS20i
A cinema-derived sixteen-channel processor with extensive AES/EBU and analog routing, Dirac Live, active crossovers, four-subwoofer bass management and up to 34 audio outputs.
RS20i combines sixteen-channel immersive decoding with extensive analog and AES/EBU routing, sophisticated EQ and active crossover options.
The product can expose far more physical outputs than the core decoder channel count because its routing and expansion architecture also supports bi-amping, tri-amping and additional processing roles.
Sixteen AES/EBU inputs and outputs, sixteen analog outputs, optional expansion, multiple EQ layers and active high/low/band-pass filters make RS20i unusually configurable.
The HDMI 2.0b subsystem is now mature rather than cutting-edge, so a modern system may choose to route video externally while retaining the processor for audio duties.
Dirac Live sits alongside unusually deep manual tools.
The RS20i supports sixteen-channel Dirac Live, but also offers third-octave EQ, parametric filtering, active crossovers, per-channel delays and up to four subwoofers in its bass-management system.
That combination is most valuable when a calibrator understands both the automated and manual toolsets and uses them intentionally.
Route
Optimise
IntegrateThe processor is part of the room architecture.
When we would shortlist it
Specialist systems that value AES/EBU, active crossover capability and cinema-derived DSP.
Existing Datasat installations where the processor remains acoustically capable and the project can accommodate its mature HDMI generation.

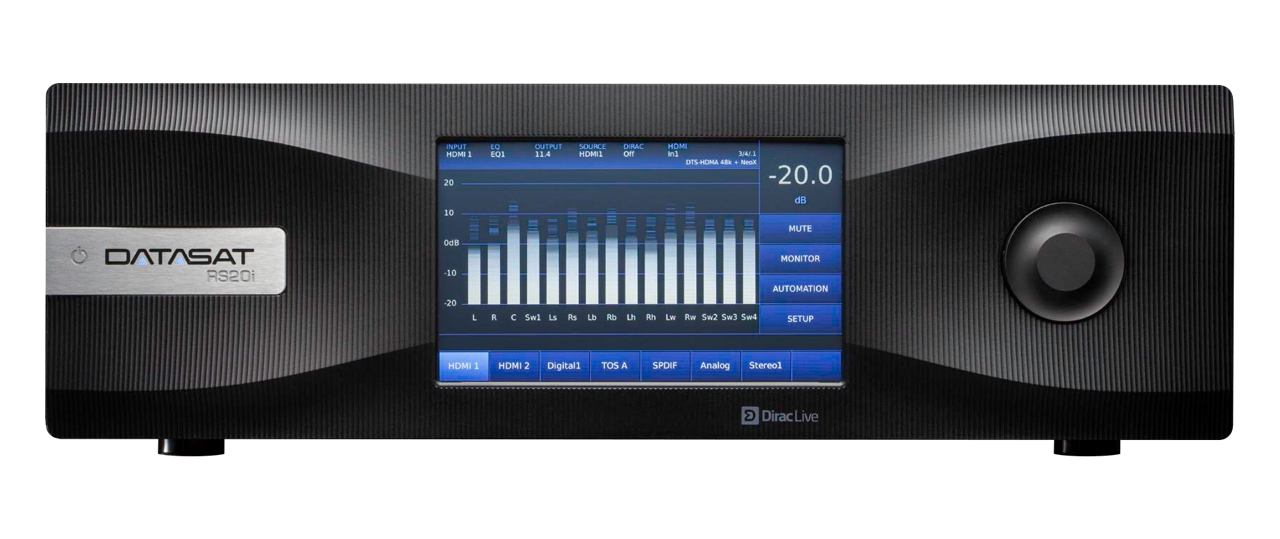

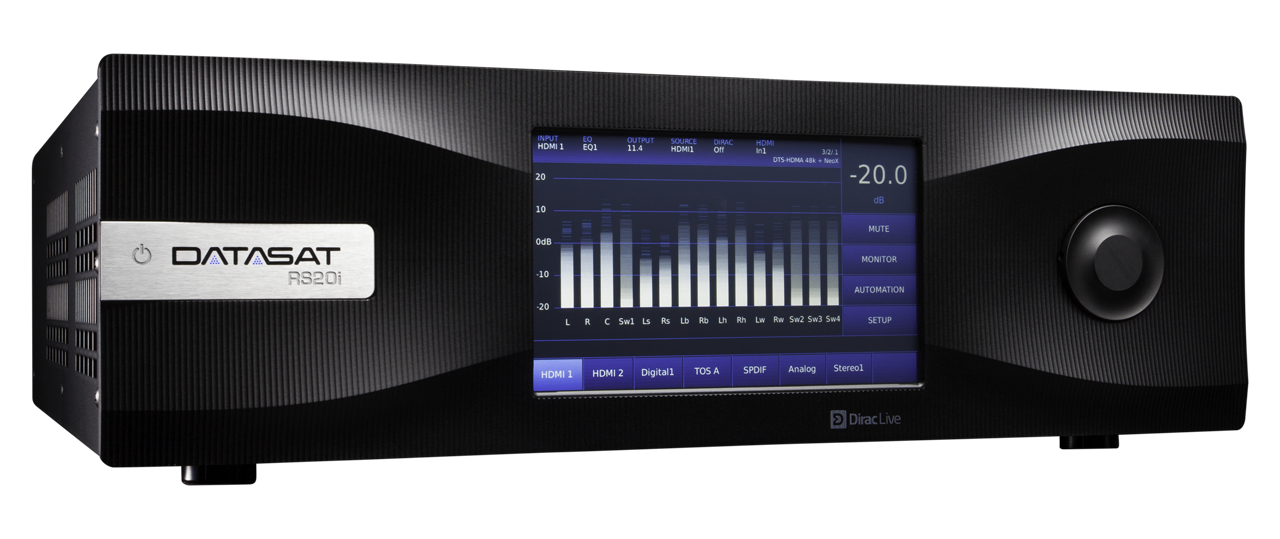

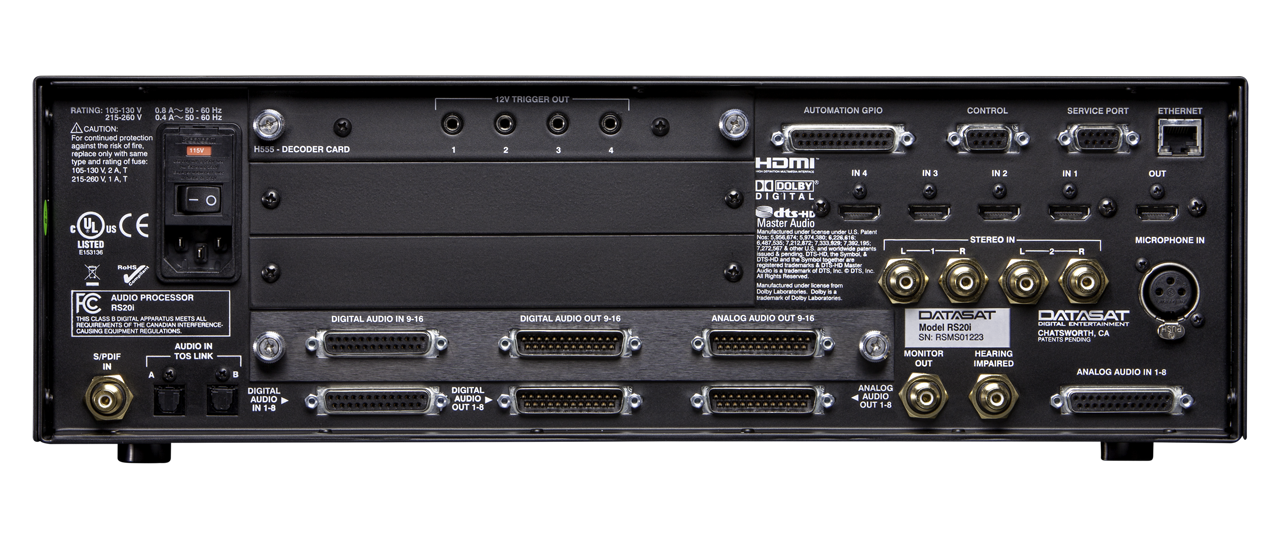

See the product from every useful angle.
Manufacturer-supplied imagery, consistently scaled for a clean front, detail and connection view.
Official product information.
Manufacturer information is provided as a reference. We confirm current details for every enquiry.
Discuss this product for your own requirements.
This is an informational listing, not live inventory or an online offer.
